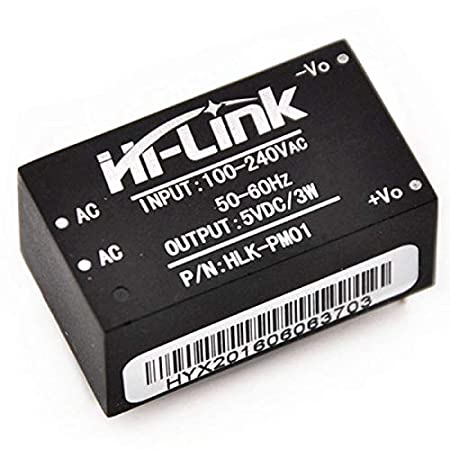

HLK-PM01 ( HI-LINK ) MODULE CONVERTISSEUR 220VAC to 5VDC

FEATURES : 1. The ultra-thin, subminiature 2. The full voltage input (90 ~ 264 vac) 3. Low ripple and low noise 4. Output overload short circuit protection function 5. High efficiency and power density 6. Product design to meet the EMC and safety testing requirements 7. Low power consumption, green environmental protection, no-load loss < 0.1 W Aging and 8.100% load test 9. Meet the requirements of UL, CE, The electrical characteristics The input features (test) at room temperature. The name of the project The technical requirements:Single bit The rated input voltage:100-100.VAc The input voltage range:90-90.VAc Maximum input current:0.2 or less a. Input surge current;10 or less a. Maximum input voltage:270 or less VAc Input soft start: 50 or less MS Efficiency of low input voltage: Vin = 110 vac, output with 69 or more % High input voltage: Vin = 220 vac, output with 70 or more % Long-term reliability:MTBF 100000 or more H. No load rated output voltage: 5 / – 0.1 VDc Full rated output voltage: 5 / – 0.2 VDc A short time maximum output current: P 1000 ma The maximum output current for a long time: P 600 ma Voltage regulation: / – 0.2 % Load regulation: / – 0.5  % The output ripple and noise: (mVp – p) 50 or less The rated input voltage and output load.With 20 MHZ bandwidth oscilloscope, Load and 10 uF and 0.1 uF capacitance test. The MV Switch machine overshoot (rated input voltage, output and 10% load) 5 or less % VO Output over-current protection Output the maximum load of 150-200% Output short circuit protection Directly to the output of the normal short circuit, short circuit automatically resume normal work after removal
