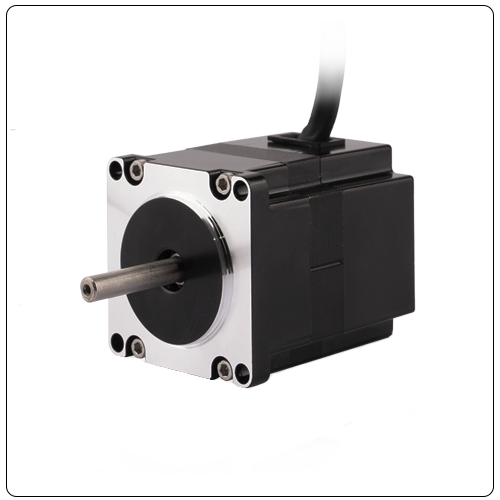

42BLDC65A240 MOTEUR DC BRUSCHLESS 24VDC 31W 3000RPM MotionKing
$11.36
$14.54
Details Model Rated power Rated voltage Retaed Current Number of poles Rated speed Torque @ rated speed Peak torque Moment constant Length L Weight W V DC A rpm N.m N.m N.m/A mm Kg 42BLDC65A-240 28 24 1.56 8 3000 0.1 0.3 0.06 65 0.45 42BLDC85A-240 63 24 3.44 8 3000 0.2 0.6 0.06 85 0.55 Proper Characteristic: MotionKing Brushless DC Motors made of multi poles to increase the output torque. We design and make MotionKing Brushless DC motors with 8 poles, but there are only 4 poles for conventional Brushless DC motors, therefore MotionKing brushless DC motors‘ torque are higher than conventional motors’ when same frame size and same length motors. General specification: Ambient Temperature ……………………………… -25~ 60℃ Ambient Related Humidity ………………………… 20%~95% Storage Related Humidity ………………………… 20%~85% Winding type ……………………………………………… YWE Hall effect angle ………………………………………… 120 degree electrical angle Insulation Resistance ………………………………… 100MΩ Dielectric Strength ……………………………………… 1 min, 1000VAC, 50Hz
Brushless
