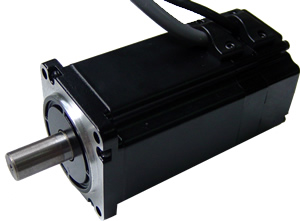

60BLDC70A440 MOTEUR DC BRUSCHLESS 48VDC 157W 4.33A 3000RPM MotionKing

Products Name: 60BLDC Brushless Motor Model: 60BLDC Details Model Rated power Rated voltage Rated Current Number of poles Rated speed Torque @ rated speed Peak torque Moment constant Length L Weight W V DC A rpm N.m N.m N.m/A mm Kg 60BLDC50A-340 78 36 2.89 8 3000 0.25 0.75 0.09 52 0.9 60BLDC70A-240 156 24 8.72 8 3000 0.5 1.5 0.12 73 1.25 60BLDC70A-440 156 48 4.33 8 3000 0.5 1.5 0.12 73 1.25 60BLDC90A-640 235 310 1.16 8 3000 0.75 2.25 0.64 94 1.6 *Note: We can also manufacture products according to customer’s requirements. Proper Characteristic: MotionKing Brushless DC Motors made of multi poles to increase the output torque. We design and make MotionKing Brushless DC motors with 8 poles, but there are only 4 poles for conventional Brushless DC motors, therefore MotionKing brushless DC motors‘ torque are higher than conventional motors’ when same frame size and same length motors. General specification: Ambient Temperature ……………………………… -25~ 60℃ Ambient Related Humidity ………………………… 20%~95% Storage Related Humidity ………………………… 20%~85% Winding type ……………………………………………… YWE Hall effect angle ………………………………………… 120 degree electrical angle Insulation Resistance ………………………………… 100MΩ Dielectric Strength ……………………………………… 1 min, 1000VAC, 50Hz
