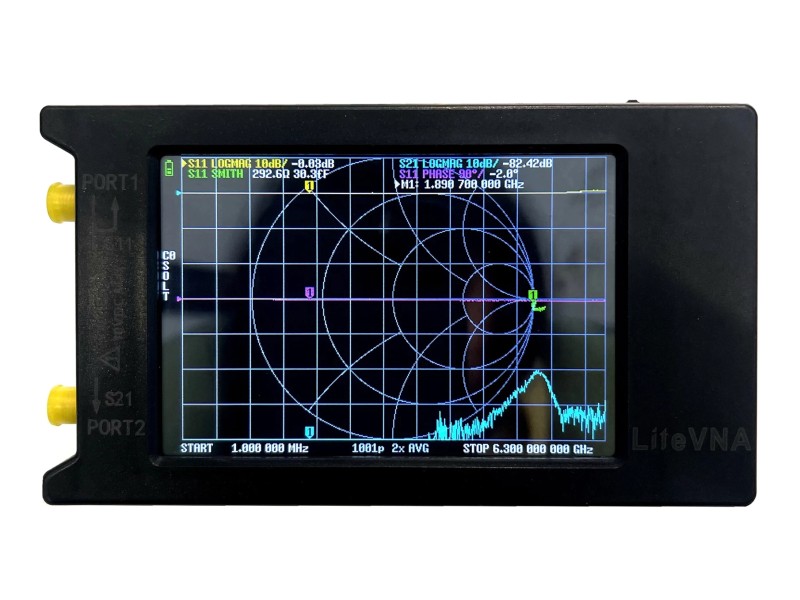

Details The LiteVNA is a portable 50 kHz – 6.3 GHz vector network analyzer which design is based on the NanoVNA and SAA2. This vna is designed to measure equipment reflection and transmission coefficients without the need for a large analyzer. The LiteVNA uses one mixer which enables S11 and S21 measurements through RF switching and TDR/DTF measurements through IFFT calculations. The analyser has a 3.95″ touch-screen display that can show the measurements in 10-1001 data points. Furthermore, the analyser has a built-in 2000 mAh battery and can be connected to an android phone or PC. Connecting to a phone or PC allows for controlling the analyser and displaying the measurements. Specifications Frequency range 50 kHz – 6.3 GHz Dynamic range >70 dB (<3GHz) >50 dB (≥3GHz) S11 noise floor <-50 dB (<3GHz) <-40 dB (≥3GHz) Frequency stabilit <0.5ppm Sweep rate >550points/s Sweep points 10-1001 points (device) 1-1024 points (USB) Display 3.95″ TFT LCD Touch-screen (480×320) Power Li-polymer 2000 mAh battery (USB charged)
